Positive Displacement Blowers

To choose the right blower, start with your system needs: required flow (often specified in cfm), target pressure and psig, gas type (air, inert gas, or mixtures), duty cycle, and allowable noise. Then confirm the operating range across best-case and worst-case conditions, especially in pneumatic conveying, where line losses can vary with material loading. Next, consider blower types and technology. A rotary lobe blower is commonly selected for rugged service and straightforward operation. MD Pneumatic blowers are built to provide reliable flow at elevated discharge pressure and to handle the system swings that occur in many industrial processes. For oil-free requirements, verify seals and venting arrangements, and review casing materials and coating options suited to your environment. Finally, evaluate installation needs. Drives, silencers, filtration, and controls can be supplied as Packages. Where footprint, maintenance access, or special connections drive the layout, custom and engineered solutions help ensure the final blower system fits the site and delivers the required execution.

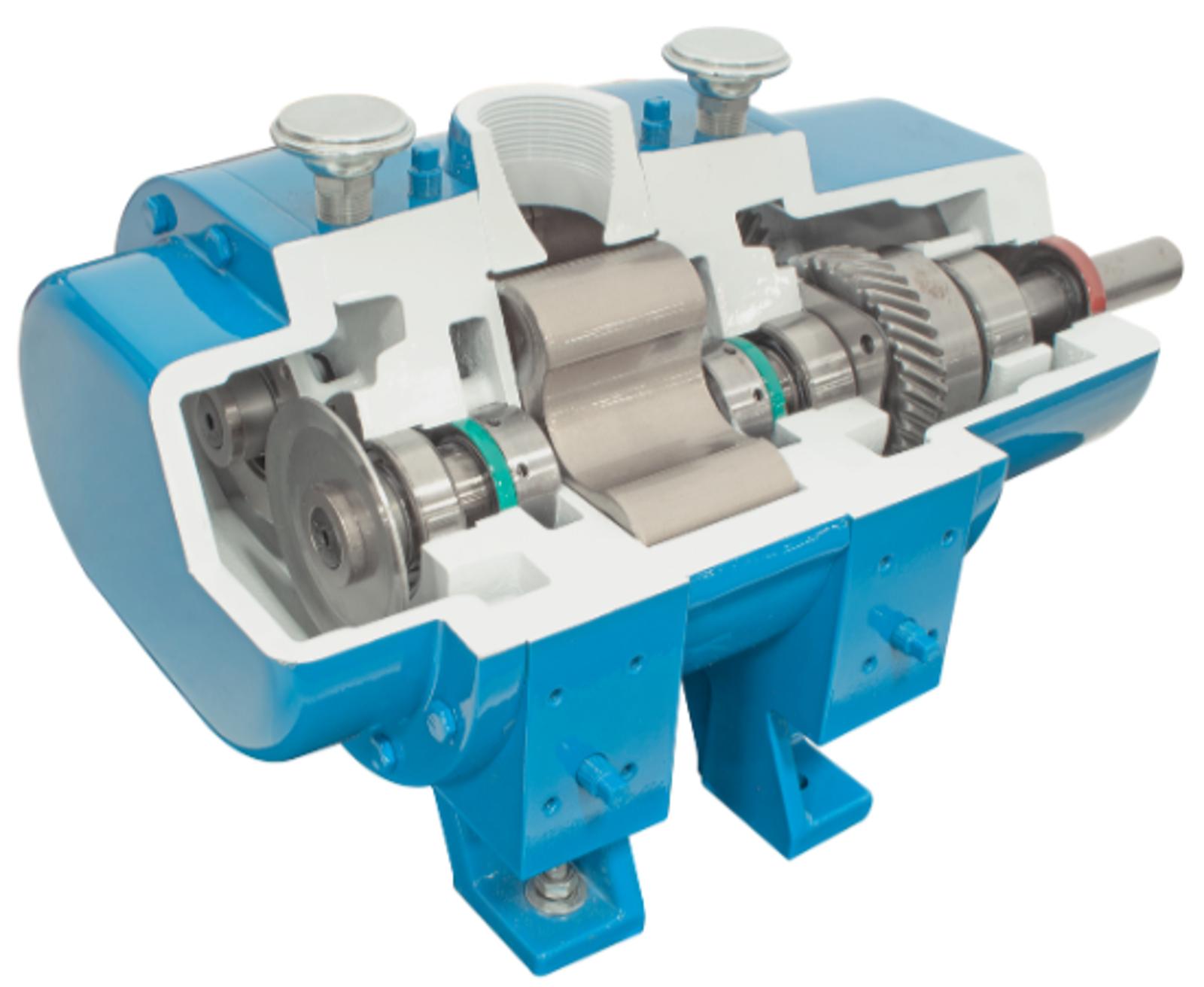

A positive displacement blower moves gas or air from the upper inlet port into the stage using two parallel rotary pistons mounted within the conveying chamber, or blower housing. The pistons rotate in opposite directions to facilitate the conveyance of gas or air from the top to the bottom. Positive displacement blowers are commonly called PD Blowers or Rotary Blowers and are typically categorized as a lobe type or a screw type.

They provide airflow that is steady and controlled. At the core of these blowers, a dynamic mechanism deftly captures and moves a specific volume of air or gas.

Rotating elements within the blower, which could be lobes or screws, spin actively. This action forms distinct chambers that seize pockets of air. These chambers then propel the air from the inlet, propel it through the blower's body, and push it out through the outlet. The method resembles a well-oiled assembly line, where workers meticulously pack and dispatch each item with unwavering accuracy

Regardless of fluctuations in external pressure, positive displacement blowers maintain a constant volume of air movement with every turn. This consistent output is great for workflow that need a steady flow rate. It helps your operations run smoothly.

Experience the steadfast execution of positive displacement blowers and understand how they can elevate the efficiency of your systems.

Sizing typically begins with the required flow in cfm at inlet conditions, then confirming the maximum discharge pressure the system will experience. In pneumatic conveying, pressure drop is influenced by pipe diameter, length, bends, and the conveyed material; small changes can shift operating points and affect execution. Confirm whether the application is open-loop or closed-loop process gas boosting, then account for temperature rise across compression and any cooling needs. When comparing models, review rotor design, porting, and operating clearances, along with bearings, seals, and lubrication approach. These features impact efficiency, noise, maintenance intervals, and long-term reliability. Also verify casing rigidity and alignment, since stable clearances protect rotors and support consistent operation. If the system operates near limits, high pressure, high temperature, or variable demand. Work with the supplier to set custom protection and operating setpoints to keep the blower within its rated range and to prevent overheating at low flow.
