- Simple, robust design can handle process by-products - liquids, condensate, and even small particles
- No oil or water in contact with process
- No contact between operating components in the casing
- Full pumping speed from atmospheric pressure down to 1 Torr; ultimate pressure 0.1 Torr (.05 Torr on Model KDP-800)
- Quiet operation - less than 85 dB(A)
- Short gas path through the pump for quick discharge
- Extended shaft for either V-belt or direct drive
- Casing and rotors are made of ductile iron, PFA coated.

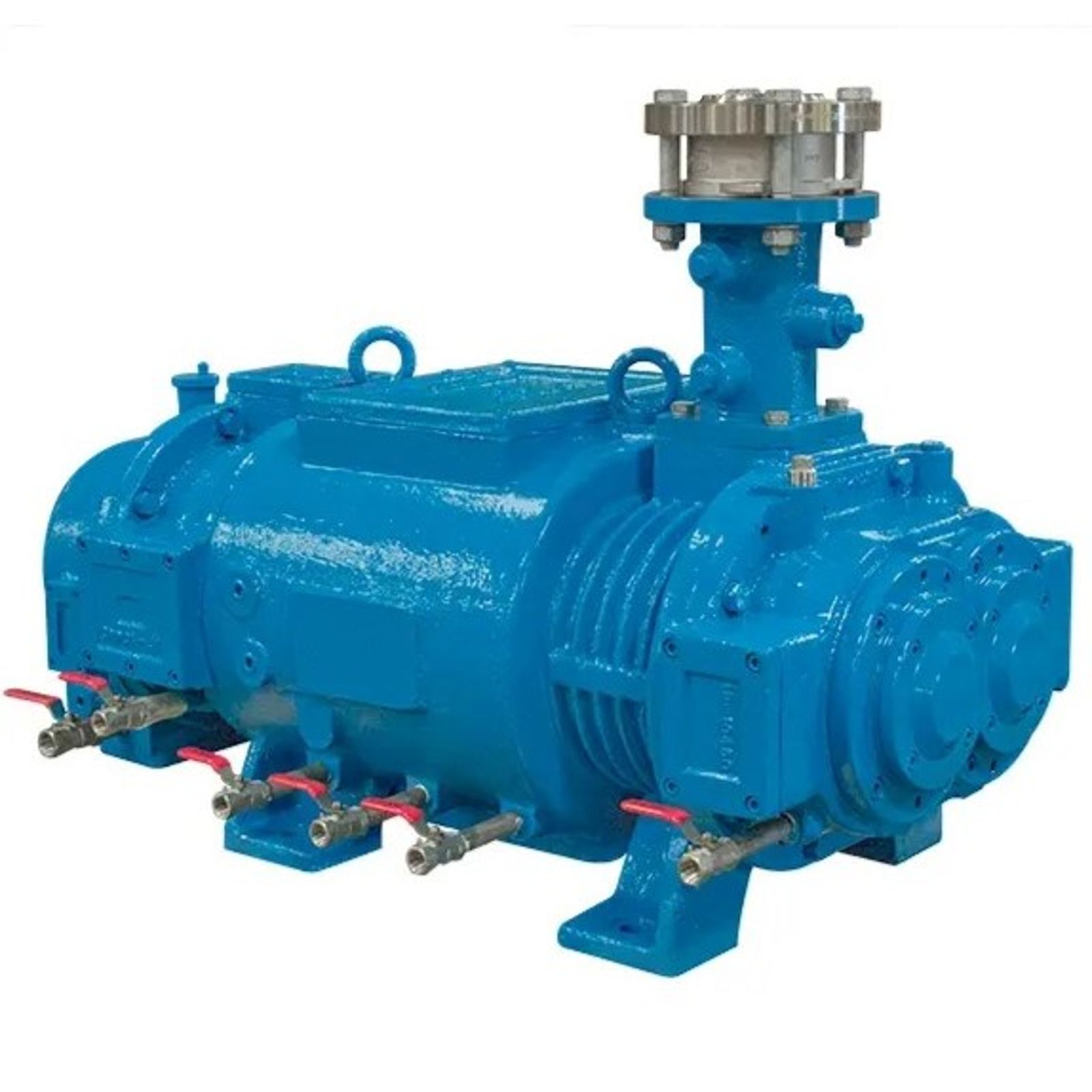

Dry Screw Vacuum Pump - KDP
Model: KDP150, KDP330, KDP400, KDP800
Applications: Chemical & Pharmaceutical Processing, Solvent Distillation/Vapor Recovery, Solvent Recovery, Crystallization
KDP screw-type dry vacuum pumps are environmentally friendly as there is less oil to dispose of and maintain within their design. These pumps are more efficient than a liquid-sealed model and are well suited for industrial and process applications.
