- Patented variable pitch rotor design increases efficiency and lowers temperatures
- No oil or water in contact with process gases
- Can handle both condensible vapors and some solids without leaving residue
- Capable of full pumping speed from atmospheric pressure to 1 Torr (1.3 mbar a)
- Can achieve ultimate vacuum as low as 0.01 Torr (0.013 mbar a)
- No metal-to-metal contact between operating parts
- Quiet operation
- PEEK coated internals reduce damage from corrosive or condensable gases
Model: SDV120, SDV200, SDV320, SDV430, SDV800
Applications: Chemical & Pharmaceutical Processing, Solvent Recovery, Crystallization, Vapor Coating

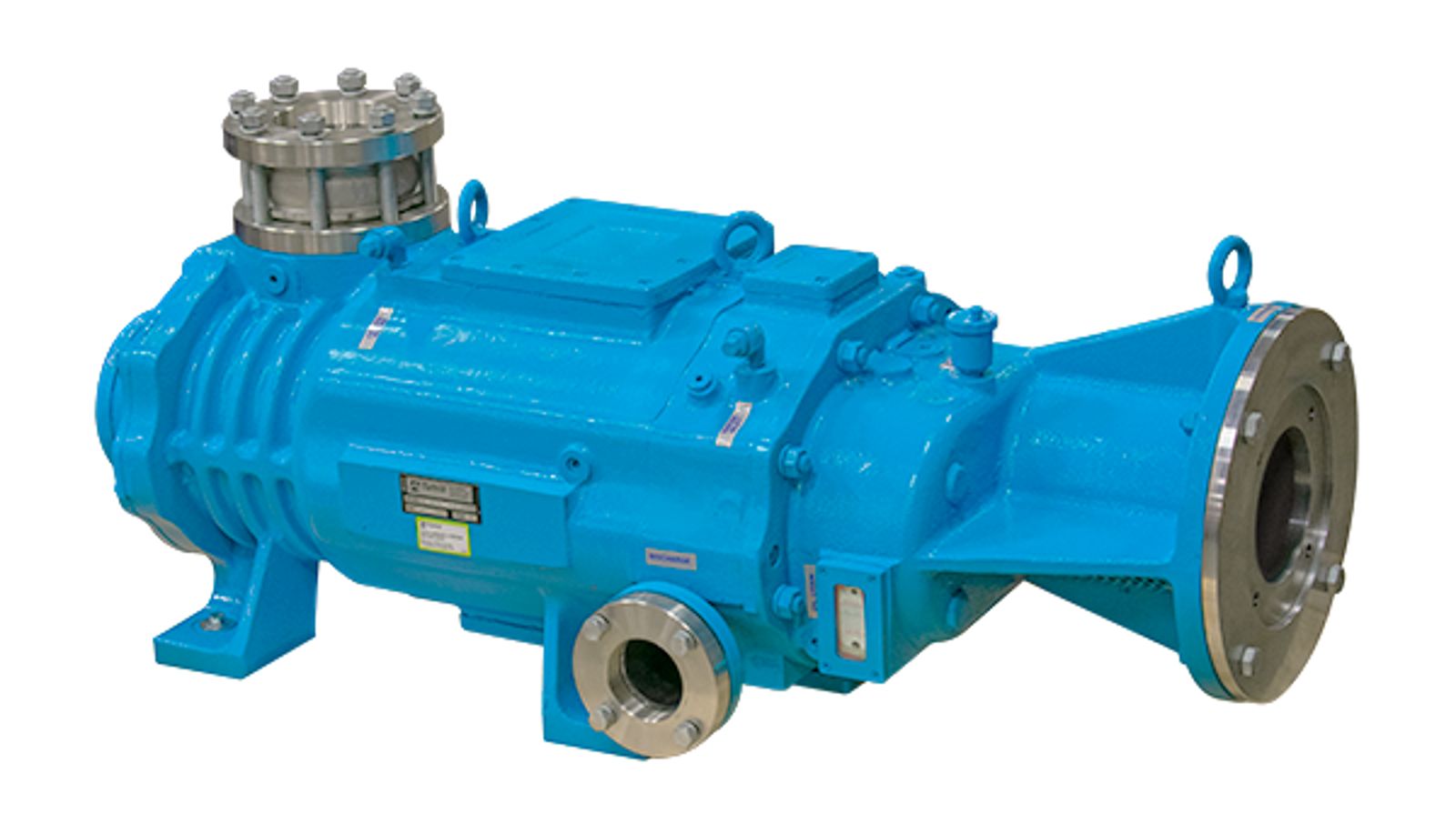

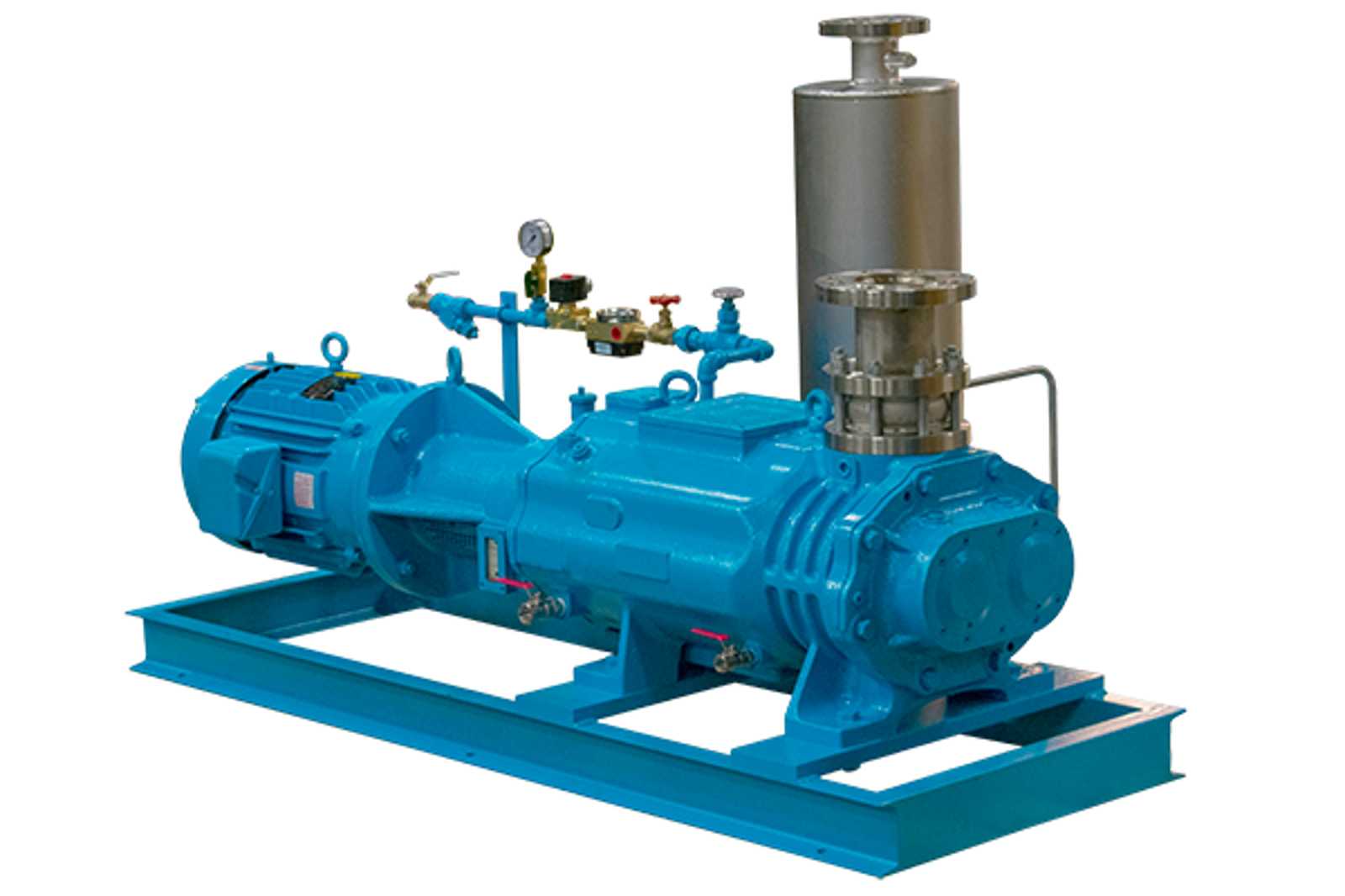

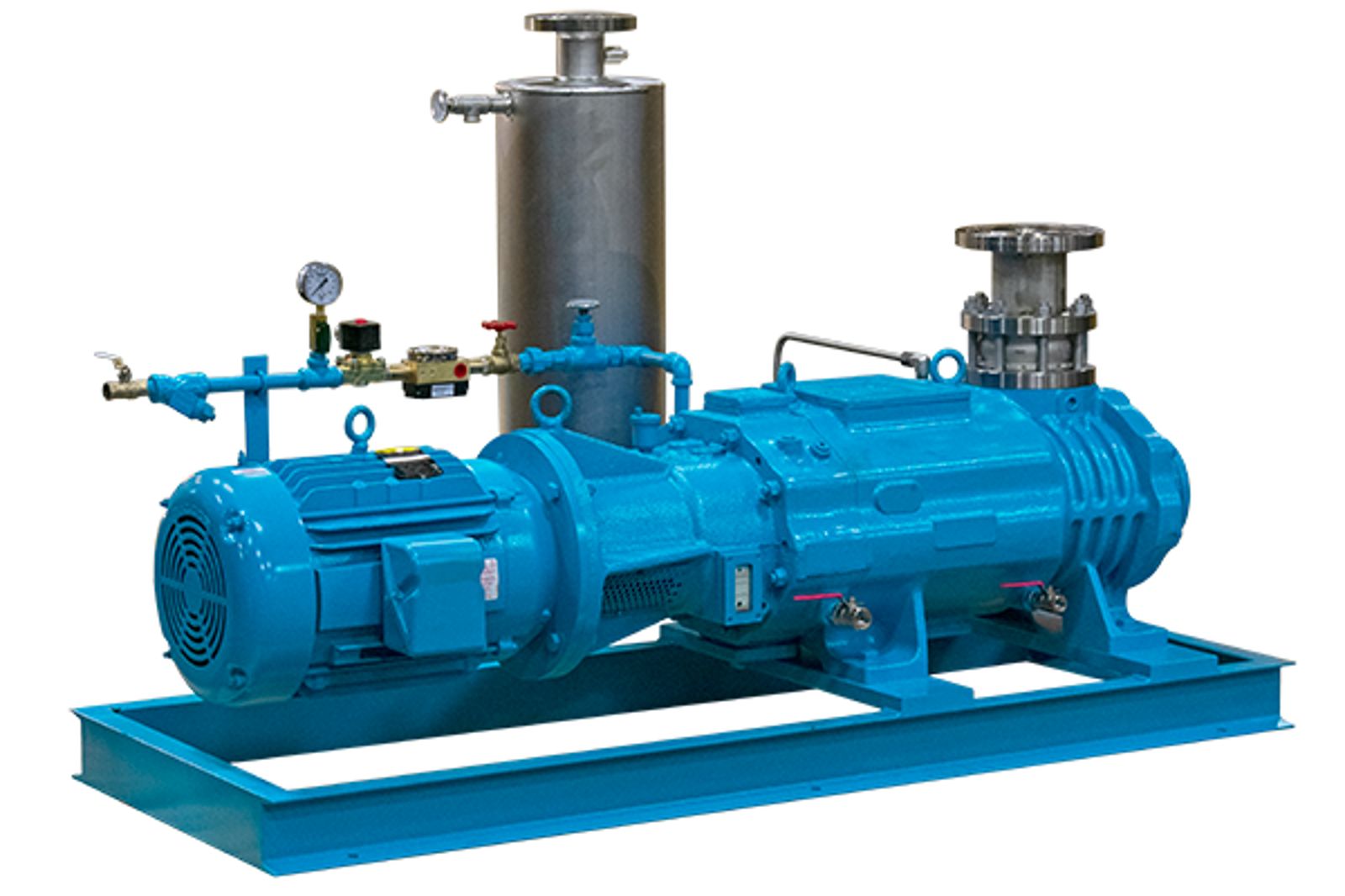

SDV variable pitch, screw-type dry vacuum pumps are environmentally friendly as there is less oil to dispose of and maintain within their design. These pumps are more efficient than a liquid-sealed model and are well suited for industrial and process applications. The SDV’s space-saving C-face motor design eliminates the need for motor coupling and guard. It features a short gas path through the pump for quick discharge.
Brochure Download
Kinney Vacuum Pumps and Boosters Brochure
Brochure Download (ES-MX)
Kinney Vacuum Pumps and Boosters Brochure (EX-MS)
Cut Sheet Download
SDV120, SDV200 Dry Screw Pump Cut Sheet
Cut Sheet Download
SDV320, SDV430 Dry Screw Pump Cut Sheet
Cut Sheet Download
SDV800 Dry Screw Pump Cut Sheet
Operator's Manual Download
SDV Series Manual
