- Most models can achieve ultimate pressure levels near 0.1 mbar (75 microns)
- Compact design for easy installation
- Carbon composite vane material for long life
- Oil-flooded, multi-vane vacuum pumps
- Single-stage, air cooled, and direct driven
- Oil level sight glass and vibration isolators
- TEFC high efficiency tri-voltage motor
- (208-230/460V 50/60)
- Models KVA 25-40 include spin-on oil filter and exhaust pressure gauge
- Ideally suited for clean or moderately contaminated application when suction filters are fitted to the pump
Model: KVA12, KVA21, KVA25, KVA40
Applications: Vacuum Packaging, Central Vacuum Systems, Meat Packing, Vacuum Chucking & Holding, Plastic Thermoforming, Food Processing

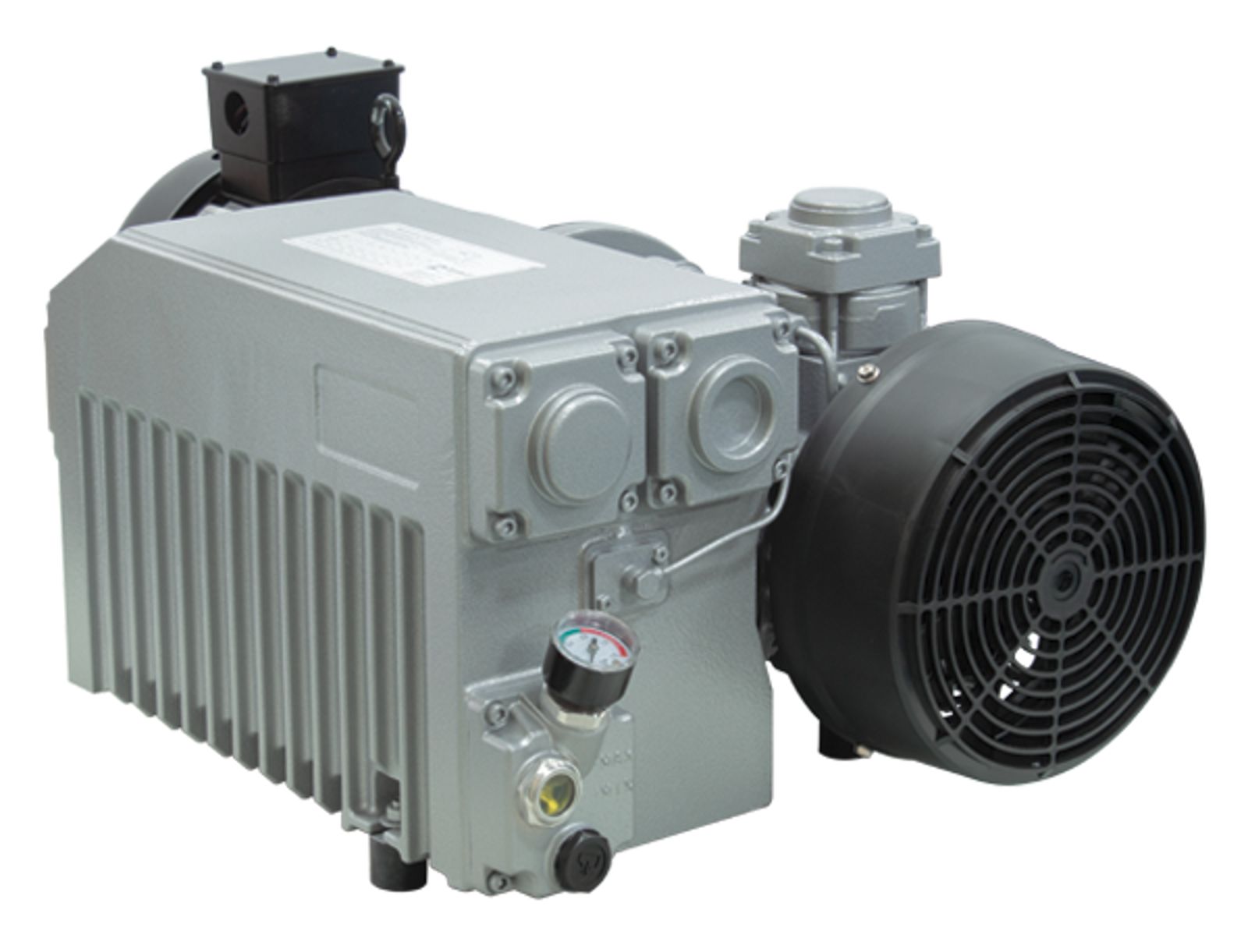

KVA oil-flooded, multi-vane vacuum pumps are single stage, air cooled and direct driven. This simple design ensures the reliability and the durability that is required in the vacuum industry. The performance of the KVA rotary vane vacuum pump has been optimized to provide even deeper vacuum levels than before. Most models can achieve ultimate pressure levels near 0.1 mbar.
Brochure Download
Kinney Vacuum Pumps and Boosters Brochure
Brochure Download (ES-MX)
Kinney Vacuum Pumps and Boosters Brochure (EX-MS)
Brochure Download
Kinney KVA Vane Pump Brochure Brochure
Brochure Download (ES-MX)
Kinney KVA Vane Pump Brochure Brochure (ES-MX)
Cut Sheet Download
KVA12-21 Vane Pump Cut Sheet
Cut Sheet Download
KVA25 Vane Pump Cut Sheet
Cut Sheet Download
KVA40 Vane Pump Cut Sheet
Product Info Download
KVA Model Selection by Pump Size
Competitor Comparison Download
KVO Rotary Vane Vacuum Pump Competitor Comparison
Sell Sheet Download
KVO & KVA Oil-Sealed Rotary Vane Vacuum Pump Comparison Sell Sheet
Operator's Manual Download
KVA Series Manual
