- Quiet running
- High pumping capacity at high & low pressures
- Triplex piston design: dynamically balanced & practically vibration-free
- Durable in dirty applications
- No metal-to-metal contact between pump piston & cylinder - clearances are filled with oil
- KT models include an integral, positive pressure lubrication system to ensure reliable lubrication at all pressure levels

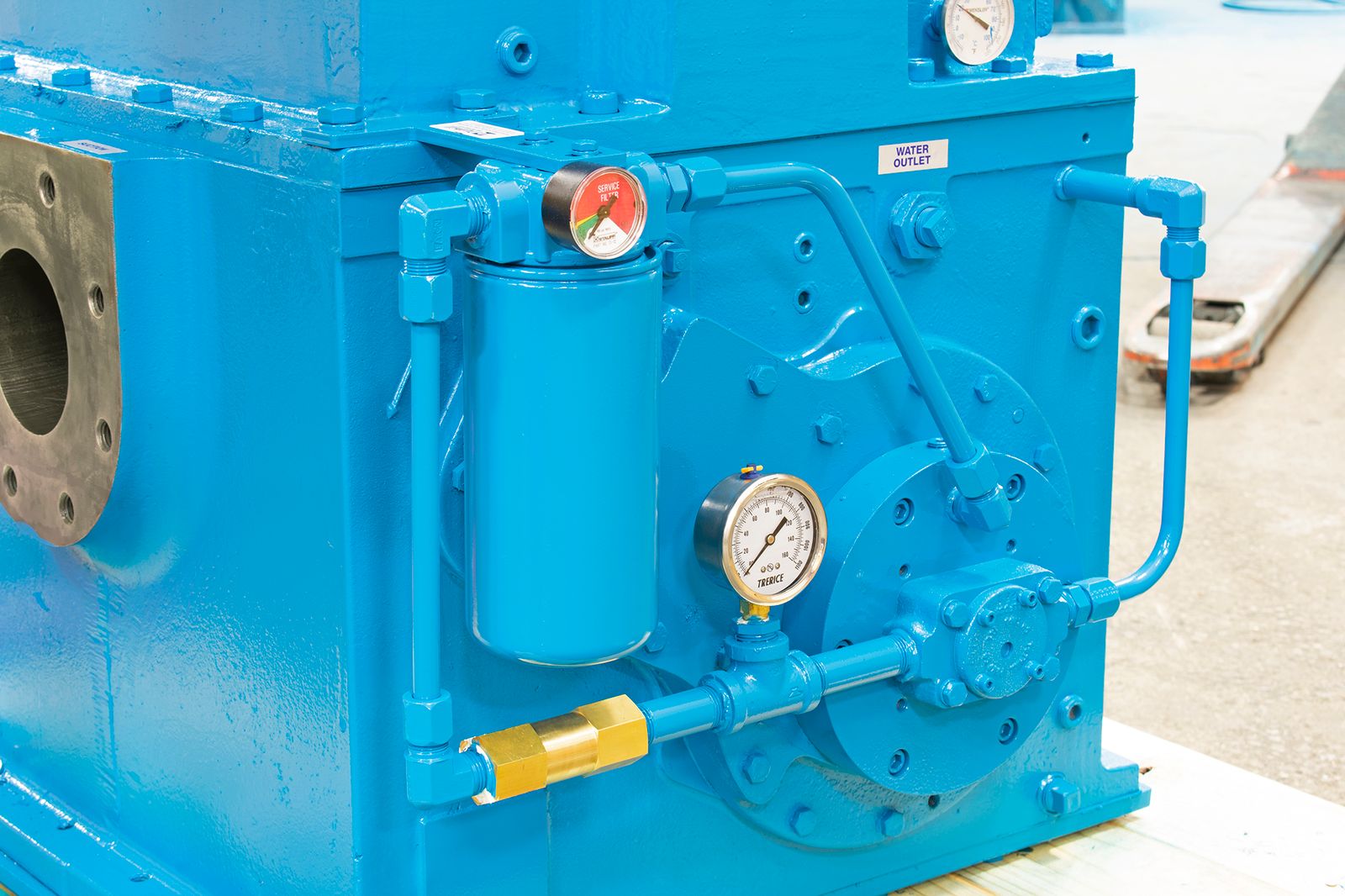

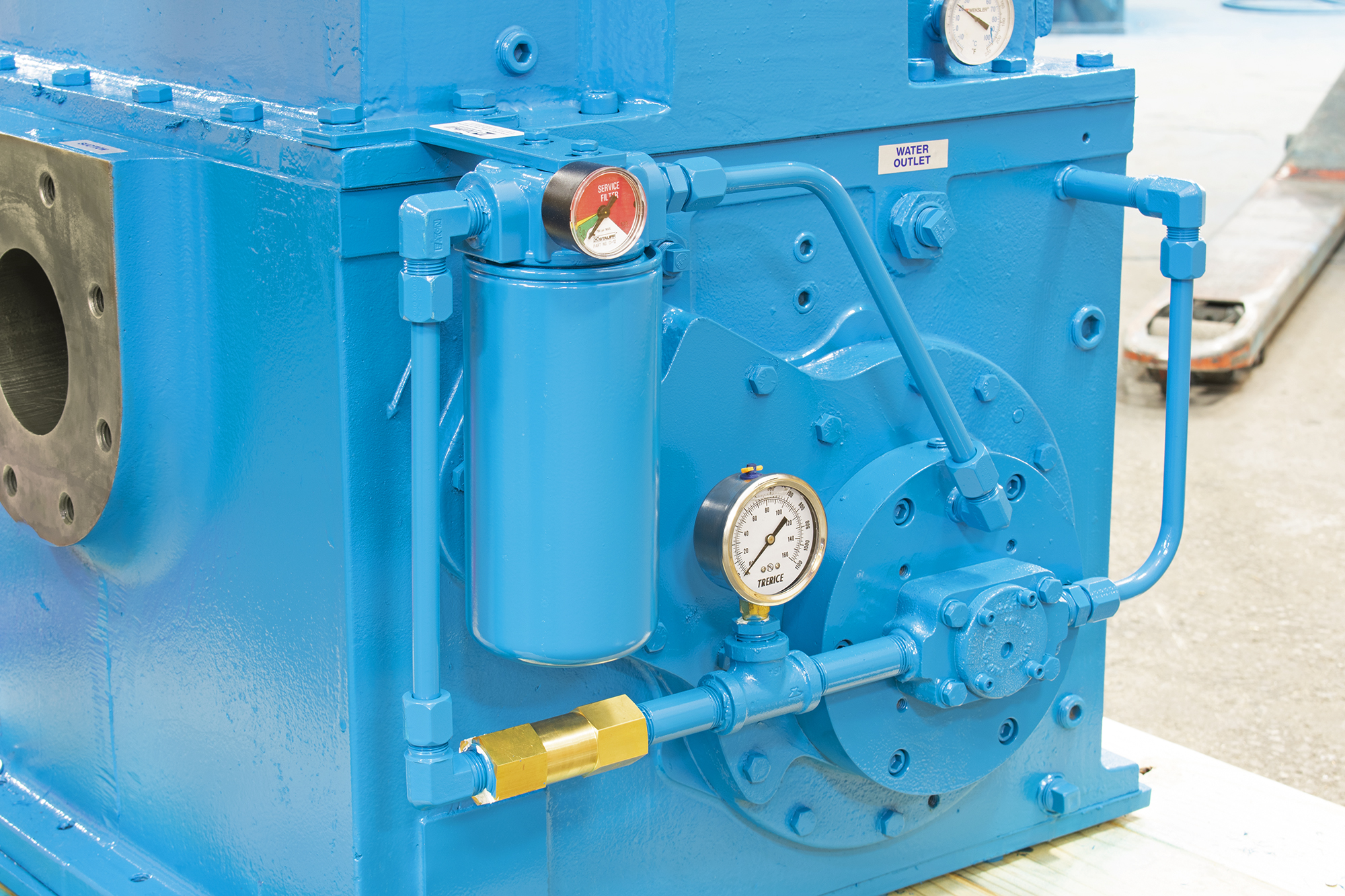

- Optional factory-mounted oil filtration system lowers maintenance costs and increases uptime
- Also available as a retrofit kit for existing KT pumps
- KT pumps are water-cooled. Optional air-cooling systems are available
- Adjustable gas ballast valves are standard for handling water and other vapor loads

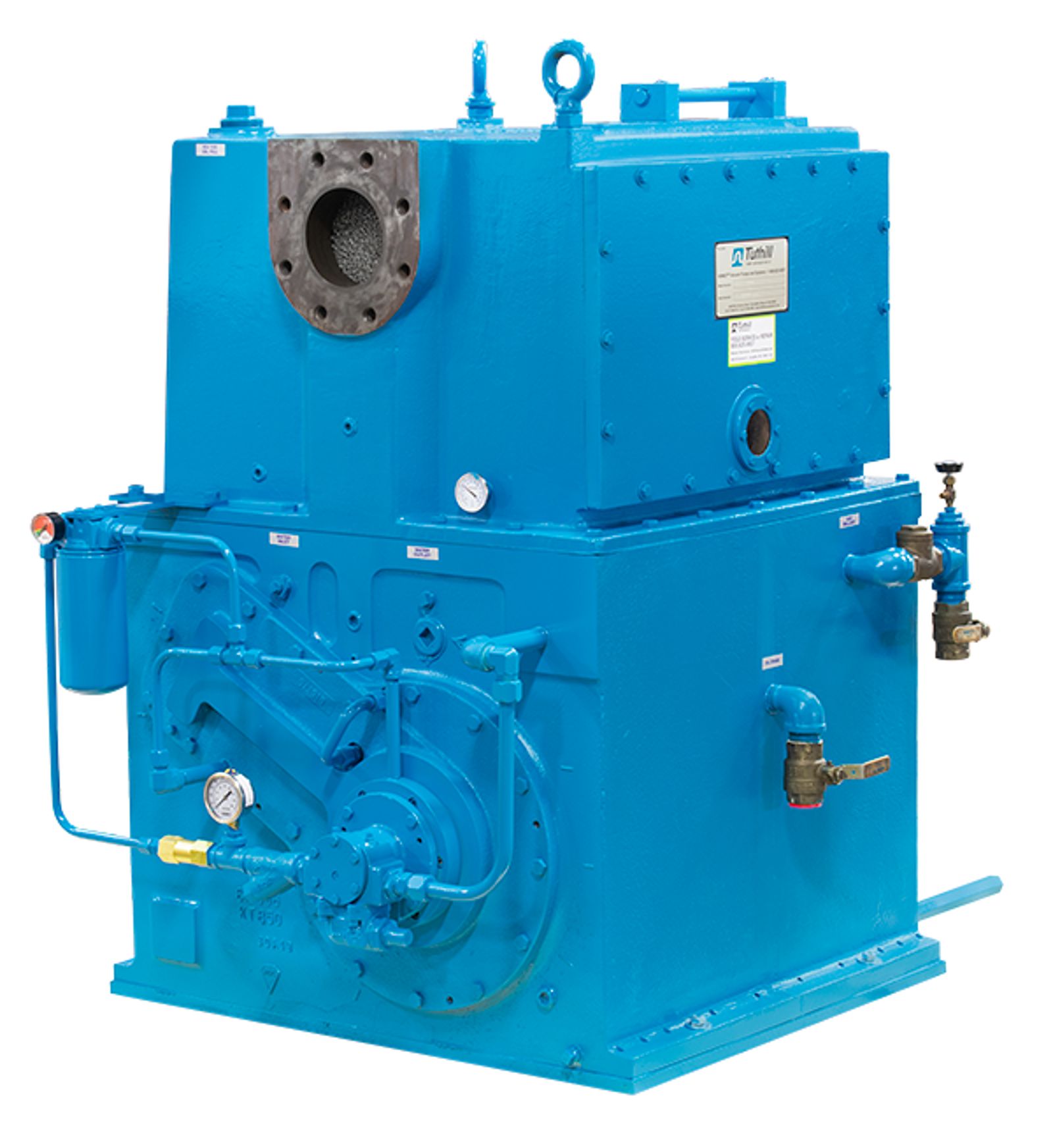

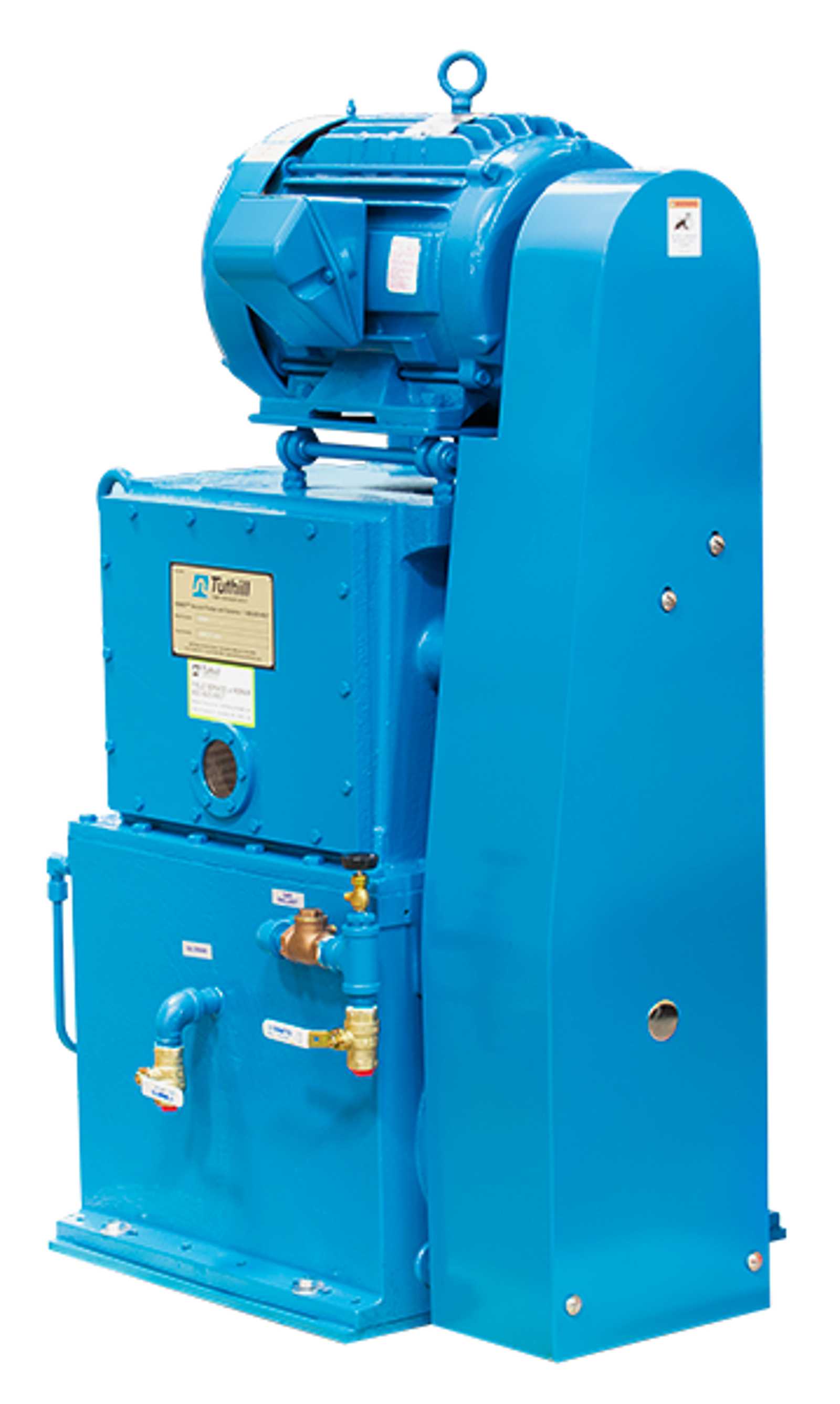

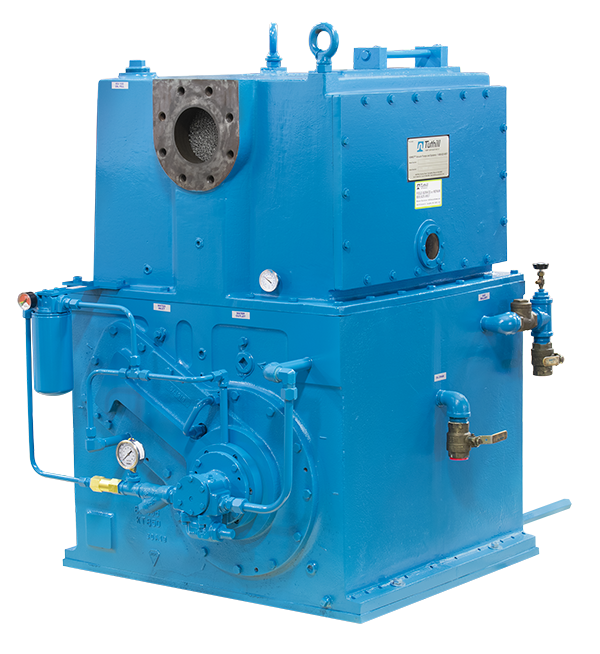

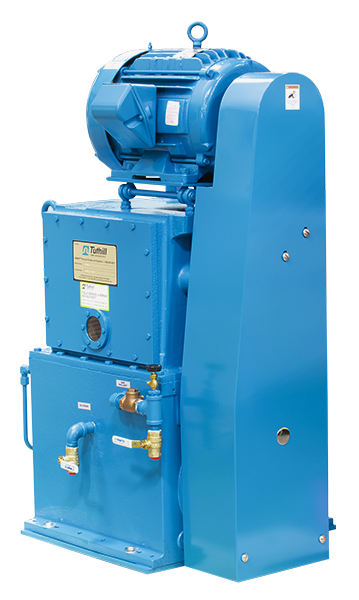

Model: KT150C, KT300D, KT500D, KT850D
Applications: Transformer Oil Drying, Heat Treating, Coating, Metallurgy
KT single-stage models include an integral, positive pressure lubrication system to insure reliable lubrication at all pressure levels. KT pumps are water-cooled. Optional air-cooling systems are available. Adjustable gas ballast valves are standard for handling water and other vapor loads. Optional factory-mounted oil filtration system lowers maintenance costs and increases uptime. Kinney stands by its 100+ years of quality and durability in vacuum pump technology by offering the longest rotary piston pump warranty in the industry - 30 months!
Brochure Download
Kinney Vacuum Pumps and Boosters Brochure
Brochure Download (ES-MX)
Kinney Vacuum Pumps and Boosters Brochure (EX-MS)
Brochure Download
Kinney Rotary Piston Vacuum Pump Selector Manual
Brochure Download (ES-MX)
Kinney Rotary Piston Vacuum Pump Selector Manual (ES-MX)
Cut Sheet Download
KT Piston Pump Cut Sheet
Cut Sheet Download
Vacuum Oil Filtration Systems Cut Sheet
Cut Sheet Download
Oil Mist Eliminators for Kinney Vacuum Pumps Cut Sheet
Sell Sheet Download
KT Filter Sell Sheet
Operator's Manual Download
KT Series Manual
Operator's Manual Download
KT Oil Filter Kit Manual
