Applications: Pneumatic Conveying, Dairy Milking, Wastewater Aeration, Air Sparging
The MPAK+ blower package provides maximum performance and flexibility, perfectly sized to match your application and environment. These packages feature the CP5006 and CP6008 Oil lubricated blowers, offering a versatile flow from 200 to 550 CFM, precise pressure from 6 to 13 PSI, and dependable vacuum from 10” to 14” Hg. Factory-assembled and easily transportable, these packages are suitable for indoor or outdoor use in industries like Food & Beverage, Power & Energy, and Construction.
TEFC NEMA Premium efficiency motor standard with 1.15 service factor

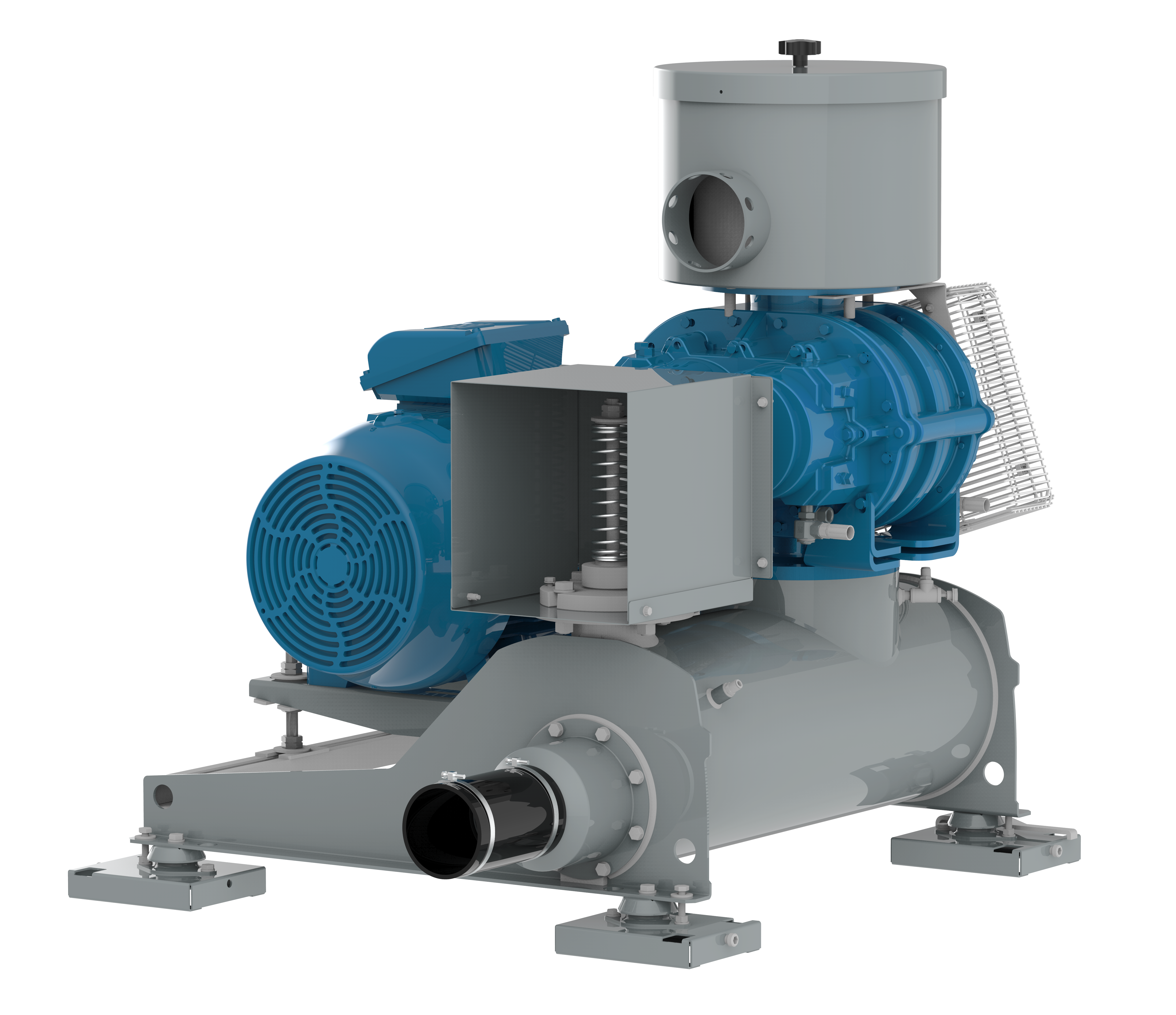

Inlet Silencer/Filter
Integral Silencer/Base
Acoustic enclosure mounting feet with brackets allowing for high-wind outdoor environments
New OSHA-compliant wire belt guard for easy belt maintenance
Suitable for indoor or outdoor installation
Shipped completely assembled for convenient installation
Optional 6/18 Pulse Standalone VFD
Optional Outdoor Weather Hood

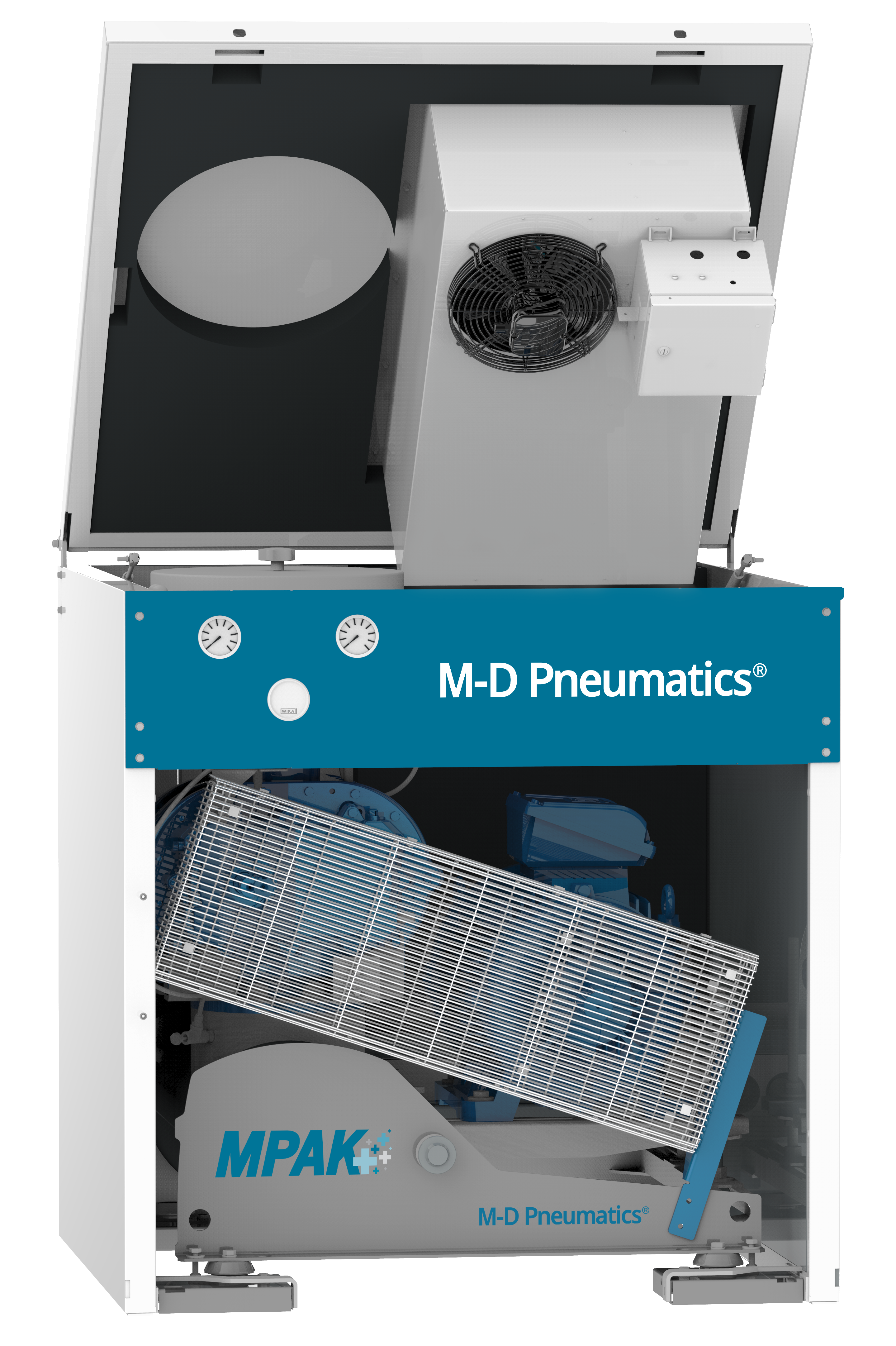

Quiet Operation. Newly designed sound enclosure panels and 2” thick enclosure foam, the MPAK+ operates at less than 80 dBA for quiet operation.
Cost Effective. Each MPAK+ package is designed with flexible pressure/flow configurations to lower upfront cost of special motors and drive groups.
Maintenance Friendly Design. The initial package design is an enclosed package, designed with front and top access for easy oil level checks and routine maintenance, including the use of 3-D Oil Sight Glasses for efficient monitoring.
Easy to Operate. Effortless operation with standard gauges that accurately measure pressure, temperature, and filter restriction level.
Ready to Go. MPAK+ packages are factory-assembled and require minimal training at start up.
Easy to Move. Easily remove the front panel and slide fork truck under the base frame to maneuver the package quickly.
MODEL | Lower CFM | Lower m/H | Upper CFM at Min. Pressure | Upper m/H at Min. Pressure | Max Pressure PSIG | Max Pressure barg | InHg / mbar |
MPAK+ 5006 CP Series | 250 | 425 | 530 | 901 | 13* | 0.89 | 14 inHg / 474.09 mbar |
MPAK+ 6006 CP Series | 500 | 850 | 805 | 1369 | 13* | 0.89 | 14 inHg / 474.09 mbar |
*MPAK+ Frame 2 Package is limited to 13 PSIG. More frame sizes to come in the future.
