High Pumping Capacity At Low Pressure

All Kinney rotary piston vacuum pumps offer no metal-to-metal contact between pump piston and cylinder and clearances are filled with oil. With options between duplex or triplex piston design and air-cooled or water-cooled, you are guaranteed to find a high pumping capacity solution tuned specifically to your operating parameters with the KT, KC, KTC, KD, or KDH line of Kinney rotary piston vacuum pumps.

Rotary Piston Vacuum Pump Solutions


KC Rotary Piston Vacuum Pump

Two-stage, air-cooled rotary piston pump recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar).5 - 26 ACFM, 0.2 microns (0.00027 mbar)

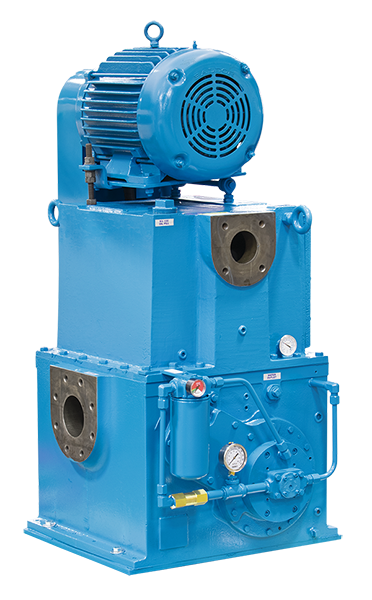

KT Rotary Piston Vacuum Pump

Single-stage rotary piston pump with high pumping capacity at high and low pressures; durable in dirty applications. Reduce vacuum system oil-related expenses with our new oil lubrication filtration system.
150 - 778 ACFM, 0.01 Torr (0.013 mbar)

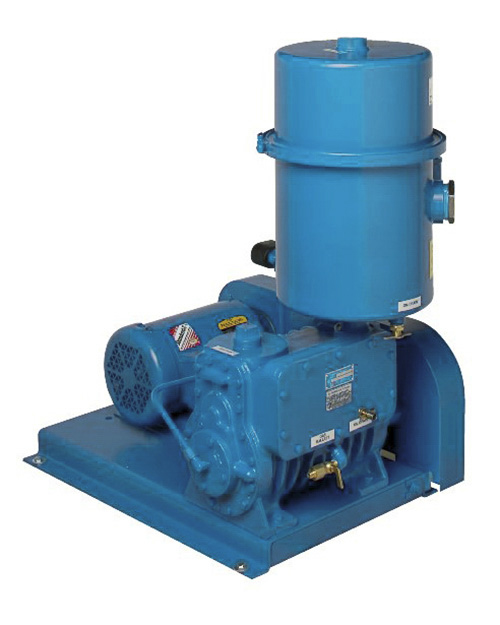

KD & KDH Rotary Piston Vacuum Pumps

Single-stage, air-cooled and water-cooled duplex rotary piston pumps with a 30-month warranty.134 - 165 ACFM, 0.01 Torr (0.013 mbar)

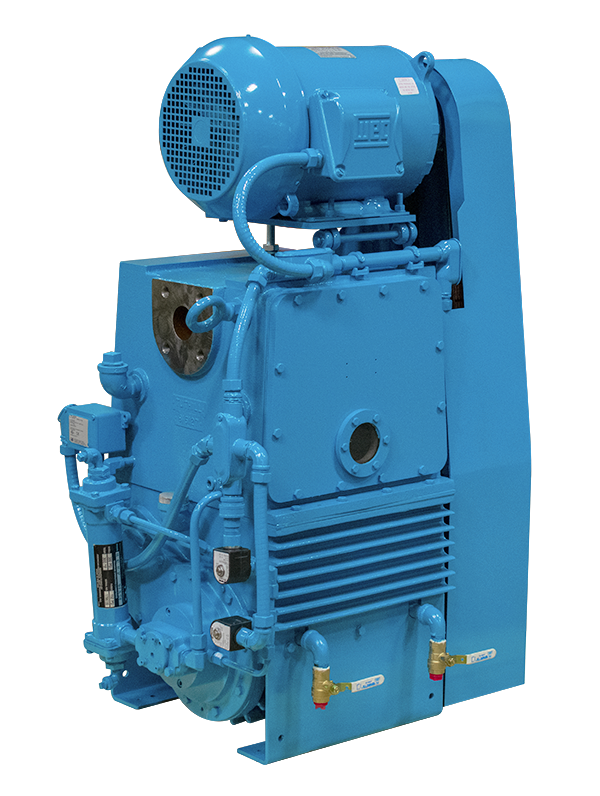

KTC Rotary Piston Vacuum Pump

Two-stage rotary piston pump recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar).21 - 107 ACFM, 0.2 microns (0.00027 mbar)
